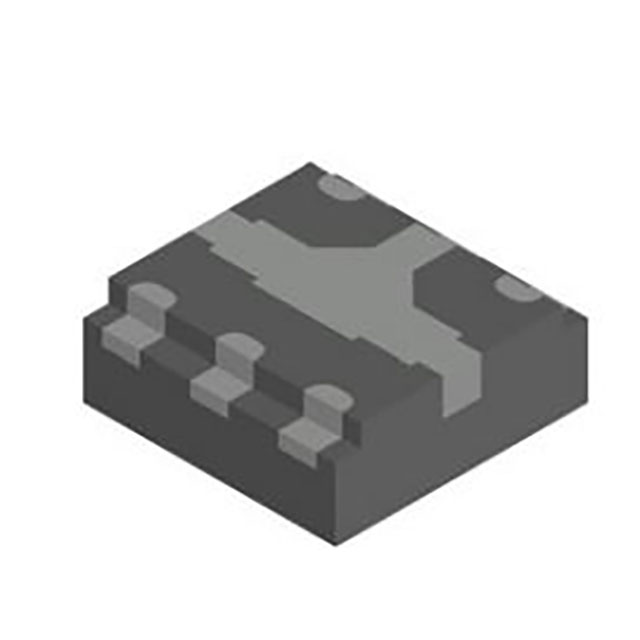

NSG1001MXTAG

Part number

NSG1001MXTAG

Product Categories

RF Switches

Manufacturer

Sanyo Semiconductor/onsemi

Describe

IC RF SWITCH SPDT 8.5GHZ 6DFN

Encapsulation

Package

Tape & Reel (TR)

ROHS status

Yes

Price

USD $0.1440

Data sheet

Quantity

Buy it now

Unit price

Price

Specification

Transport

Data sheet

TYPE	DESCRIPTION
Mfr	Sanyo Semiconductor/onsemi
Series	-
Package	Tape & Reel (TR)
Product Status	ACTIVE
Package / Case	6-PowerXFDFN
Mounting Type	Surface Mount, Wettable Flank
Circuit	SPDT
RF Type	802.11a/b/g/n/ac/ax, Bluetooth, LTE, WLAN
Operating Temperature	-40°C ~ 125°C
Insertion Loss	0.65dB
Frequency Range	100MHz ~ 8.5GHz
Test Frequency	8.5GHz
Isolation	20dB
Supplier Device Package	6-DFN (1x1)
